Histogram Select


Where to find it:


Add Adjustment Layer / Extension Pack / Histogram /


NodeGraph / Right Mouse Click / Nodes / Filter / Extension Pack / Histogram /


Shotcut (Nodegraph Only): Ctrl + H



Node Overview

Node Ports

Node Properties

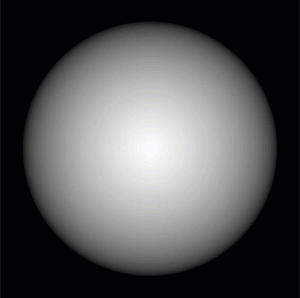

The Histogram Select Node allows you to select a value range from a grayscale input


Node Overview



Node Ports

•Position

Defines the center of the grayscale value range to select

Overwrites Position Slider if mapped


•Range

Defines the Range around the centre of the grayscale value range

Overwrites Range Slider if mapped


•Contrast

Contrasts the result of the Position/Range computation

Overwrites Contrast Slider if mapped


•Mask

Optional Mask to limit the effect

Node Properties


MAIN TAB


•Position

Defines the center of the grayscale value range to select


•Range

Defines the Range around the centre of the grayscale value range


•Contrast

Contrasts the result of the Position/Range computation


•Clamp Output

Clamps the Output of the Node to the 0-1 Value Range



•Mask Intensity

Control the intensity of the effect.

If a Mask it attached to the Mask port of the node this will control the intensity of the supplied mask
